Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: WHIR
  • Model Number: WHIR-36A1
  • Voltage: 380V
  • Power(W): 22000
  • Dimension(L*W*H): 1593*882*1125
  • Weight: 800Kg
  • Certification: CE
  • Warranty: 1 year
  • After-sales Service Provided: Engineers available to service machinery overseas
  • Used for: crush wood,bamboo,stalk,corn,.wheat into powder
  • Type: Hammer Mill
  • Hammer Quantity: 48Pcs
  • Principal Axis Speed: 2980R/min

Packaging & Delivery

Packaging Details Non-fumigation Wooden Case
Delivery Time 7-10 Days

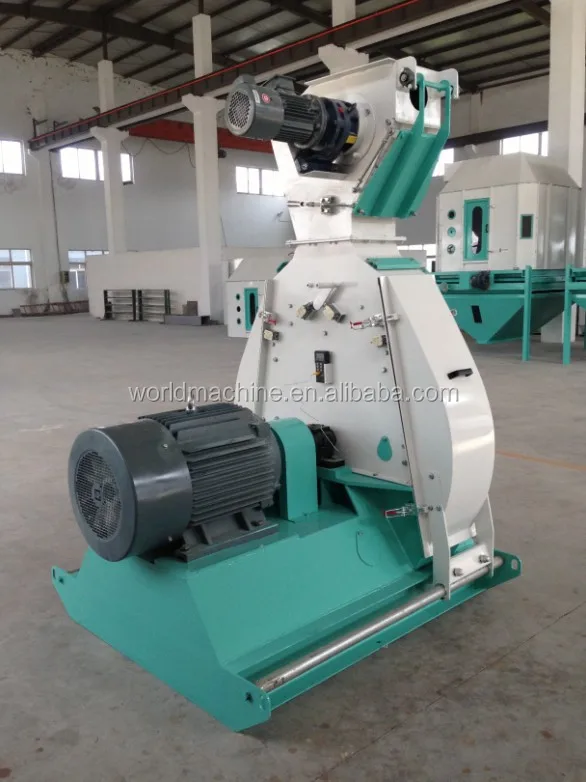

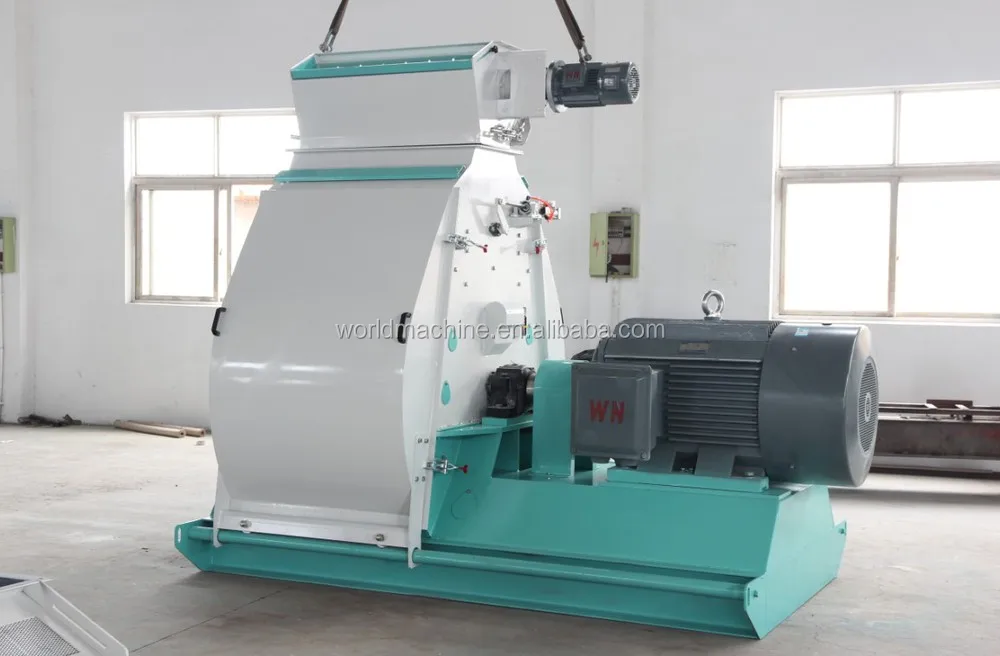

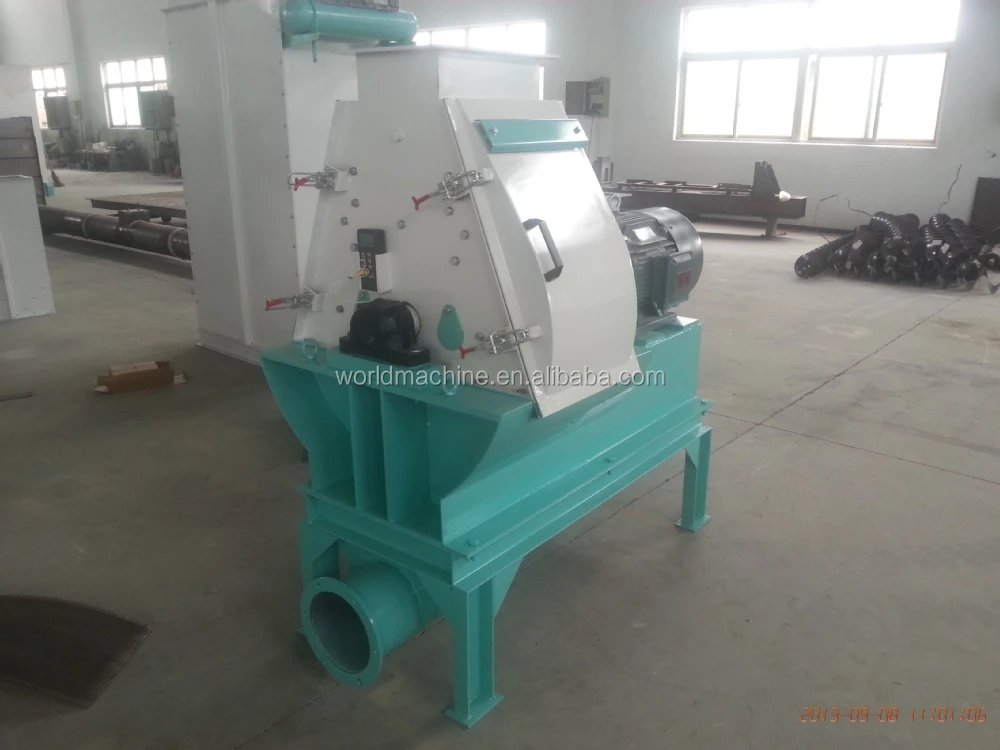

2017 Hot Sale Industrial Wood Hammer Mill





Attn: Lily Wang

Mobile/What's App: 86-136 3382 8547

Skype/Wechat: hnlily07

Mail: sales01(@)worldmachine.com.cn



Product Description



 1. Wood hammer mill introduction
    The wood hammer mill is a machine whose purpose is to crush materials by the collision between the high-speed hammer and materials. It is suitable for milling raw material like wood, tree branch, cotton stalk, corn stalk, wheat straw etc, with size less than 50mm (diameter). After milled, the output size can reach diameter 3-5 mm, then it is suitable for further processing.














2. Wood Hammer Mill Features

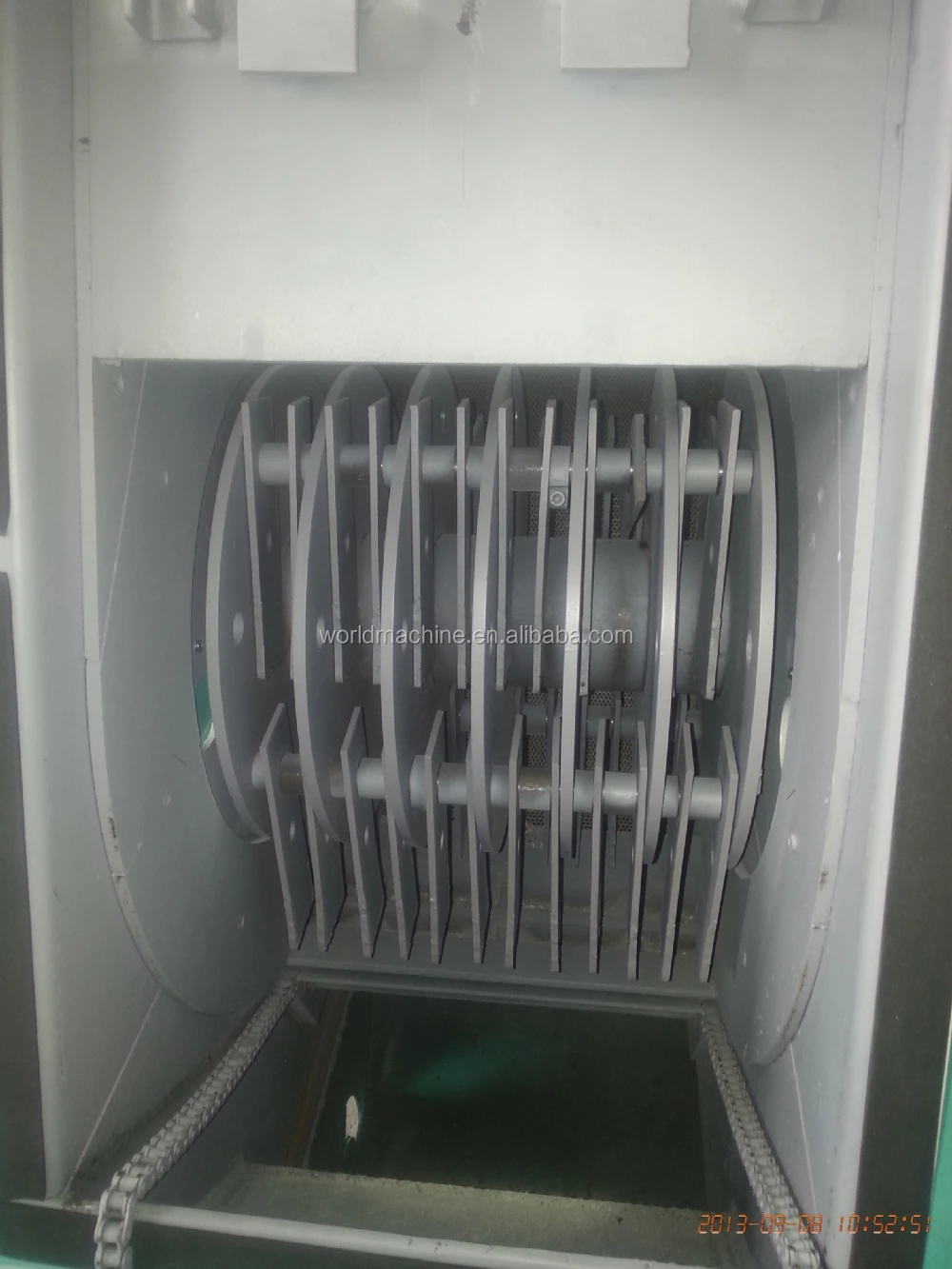

*The machine USES direct transmission, scientific and reasonable hammer sieve clearance, change the clearance, can be coarse, fine crushing, crushing chamber secondary attack technology;




















* feeder is equipped with iron removal equipment;

* Finished product granularity more fine and homogeneous;

* Using imported SKF high quality bearing, low temperature operation;

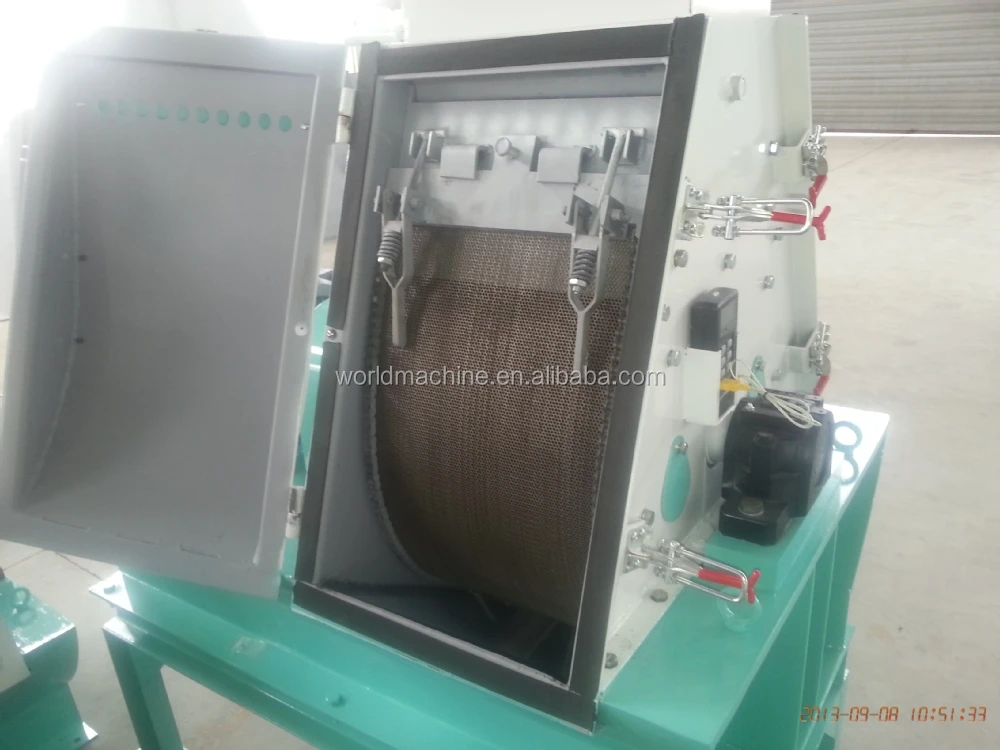

* Screen mesh adopts staggered mesh sieve, discharge smooth;

* High output, electric saving



3. Wood Hammer Mill Application
     Hammer mill can grind many kinds of biomass, the output can be produced into feed pellets or wood pellets by pellets mill.
* Grinding the granular raw materials, such as corn, sorghum, wheat, beans, etc.
* Grinding feed ingredients for pet, livestock, poultry, aquatics etc.
* Grinding raw materials by large and medium farms.
* Grass and pharmacy fine grinding.
*  Widely used to crush many kinds of straw, wood chip, tree branch, bark and leftover bits from agricultural wastes in pelletizing plants.

4. Wood Hammer Mill Specification and Technology Data

Model

WHIR-36A1

WHIR-40A1

Capacity

2-6 T/h

5-6 T/h

Power

22 Kw

37 Kw

No. Of Hammer

48 Pcs

56 Pcs

Spindle Speed

2980 R/Min

2980 R/Min

Hammer Linear Speed

87(89)M/S

87(89)M/S

Rotor Diameter

φ560(φ570) mm

φ560(φ570) mm

Crush Chamber Width

360mm

400mm

Dimensions (L*W*H)

1593*882*1125mm

1593*882*1125mm



Model

WHIR-60B

WHIR-80B

WHIR-100B

WHIR-120B

Rotor Diameters

660mm

660mm

660mm

660mm

Spindle Speed

2980 R/Min

2980  R/Min

2980  R/Min

2980  R/Min

Hammer Linear Speed

78  M/S

78  M/S

78  M/S

78  M/S

Crush Chamber Width

600mm

800mm

1000mm

1200mm

No. of Hammer

112 Pcs

128 Pcs

144 Pcs

156 Pcs

Power

55 Kw

75 Kw

90 Kw

1100 Kw

132 Kw

160 Kw

Capacity

Coarse Crush

9

12

14

16

18

20

Fine

Crush

2

3.5

4.5

6

8

10



Packaging & Shipping





Contact



Attn: Lily Wang

Mobile/What's App: 86-136 3382 8547

Skype/Wechat: hnlily07

Mail: sales01(@)worldmachine.com.cn
