Quick Details

  • Condition: New
  • Place of Origin: Henan, China (Mainland)
  • Brand Name: WHIR
  • Model Number: food hot air circulating drying oven machine
  • Usage: food hot air circulating drying oven machine
  • Type: food hot air circulating drying oven machine
  • Power Source: Gas
  • Voltage: Customized
  • Power(W): 15450
  • Weight: 1T
  • Dimension(L*W*H): 2300*1200*2300
  • Certification: CE,ISO9001, food hot air circulating drying oven machine
  • Warranty: 12Months food hot air circulating drying oven machine, 12Months food hot air circulating drying oven machine
  • Item: food hot air circulating drying oven machine
  • Application: food hot air circulating drying oven machine
  • Baking plate dimension: 460*640*45mm food hot air circulating drying oven machine
  • drying trolley: 2-8 tray food hot air circulating drying oven machine
  • Capacity of Industrial Hot air dryer: 30-480KG/Batch
  • Material: Stainless steel/carbon steel food hot air circulating drying oven

Packaging & Delivery

Packaging Details: food hot air circulating drying oven machine
Standard export wooden case
Delivery Detail: 20-15working days food hot air circulating drying oven machine

Electric heating drum wind drying oven/ Hot Air Drying Machine Dehydrator/ food hot air circulating drying oven machine



Contact:     Alex Wang
Cellphone: 0086-135 9881 2014
Skype:       ujoin99



Product Overviews

food hot air circulating drying oven machine

 2.Description of food hot air circulating drying oven machine

food hot air circulating drying oven machine is suitable for heating and dehumidifying raw materials and products for pharmaceutical, chemical, foodstuff, light industry and heavy industry.



For example,active pharmaceutical ingredients,Chinese medicine yinpian, powder, granule, crude drug, drug packing bottle, pigment, dyestuff, dehydration vegetable, food, plastic resin, electric elements, salt, paper,leather, wool, catalyst materials dry.

Advantages

 3.Working principle of food hot air circulating drying oven machine

food hot air circulating drying oven machine of steam and electricity as the heat source, through the heater to heat, continuous air supply from the air inlet into the box, and then continuously expel from wet mouth eduction, thus increases the heat transfer effect, to gradually reduce the material moisture in the cabinet.
 4.Features of food hot air circulating drying oven machine
1) Most of the hot air in the circulation, high thermal efficiency,energy saving.
2) Both inside and Outside are stainless steel.
3) Temperature is from 50°C to 150°C for steam heating and 50-350°C for electricity heating.
4) The inner wall of oven body is welded, Every place of transition adapts circular are and no dead angle.
5) Use of forced ventilation effect, equips with adjustable air distributing plate, uniform material drying,
heat source can be steam, hot water, electricity, far infrared, choose widely.
6) moringa leaf drying machine is low noise, running balance, temperature control, easy installation and maintain.
7) The control system has text display and touch screen for your choice.The whole machine is
in conformity with requirements of GMP. Applicability is wide and can dry various materials, it is general drying equipment .
Technology

 5.Technical parameters of food hot air circulating drying oven machine

Model

Capacity

(kg/batch)

Power

(kw)

Steam

consumption

Radiator

area

Air

capacity

Temp

Tolerance inside

Baking

tray

Size
W*D*H(mm)

Baking

Trolley set

CT-C-O

50

9.45

5kg/h

5

3450m³/h

0°C

8

1460*1000*1750

0

CT-C-I

120

15.45

18kg/h

20

3450m³/h

±2°C

48

2300*1200*2300

2

CT-C-II

240

30.9

36kg/h

40m²

6900m³/h

±2°C

96

2300*2200*2300

4

CT-C-III

360

46.35

54kg/h

80

10350m³/h

±2°C

144

2300*3220*2000

6

CT-C-IV

500

61.8

72kg/h

100m²

13800m³/h

±2°C

192

4460*2200*2290

8

High efficiency and temperature far infrared bacterium reducing baking oven

1200×1000×1600

1

Structure&Accessory

 6. Structure diagram of food hot air circulating drying oven machine

1) CT-C-O of food hot air circulating drying oven machine

2) CT-C-I of food hot air circulating drying oven machine

3) CT-C-II of food hot air circulating drying oven machine





4) CT-C-III of food hot air circulating drying oven machine





5) CT-C-IV of food hot air circulating drying oven machine



7.Parts of food hot air circulating drying oven machine

Customize the drying car & tray of food hot air circulating drying oven machine

Product Effects

 8.Images of food hot air circulating drying oven machine

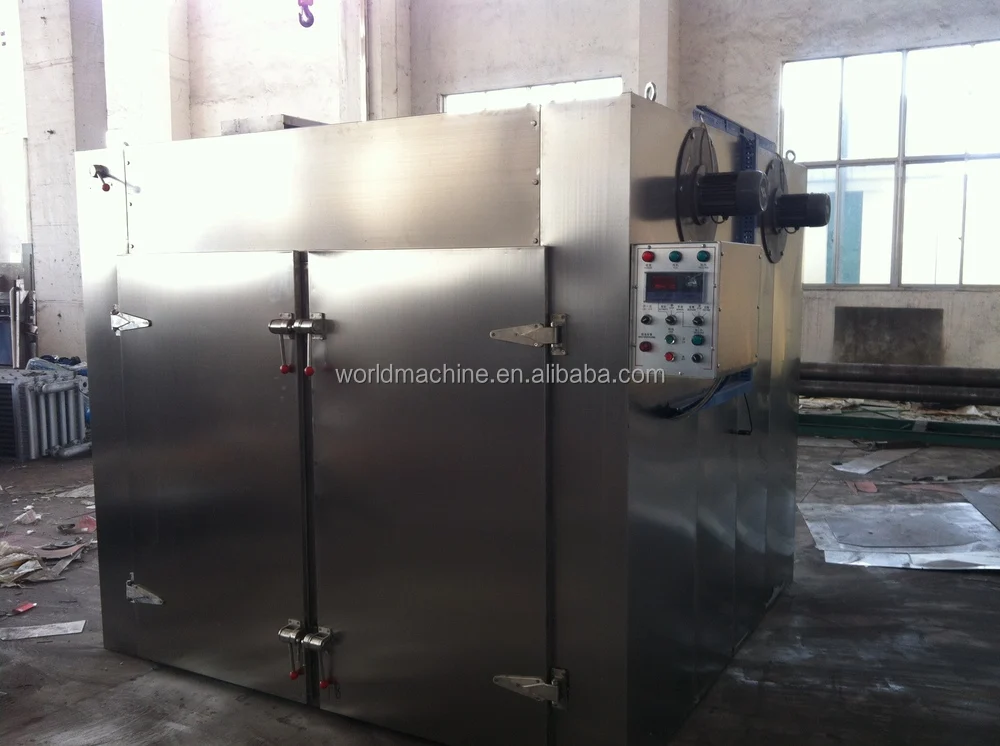

Stainless steel   food hot air circulating drying oven machine





Carbon steel food hot air circulating drying oven machine

Packaging

 9.Packing&Container load of food hot air circulating drying oven machine

Finished Products

 10. Finished product of food hot air circulating drying oven machine

Contact

 11.Contacts of food hot air circulating drying oven machine
